Description

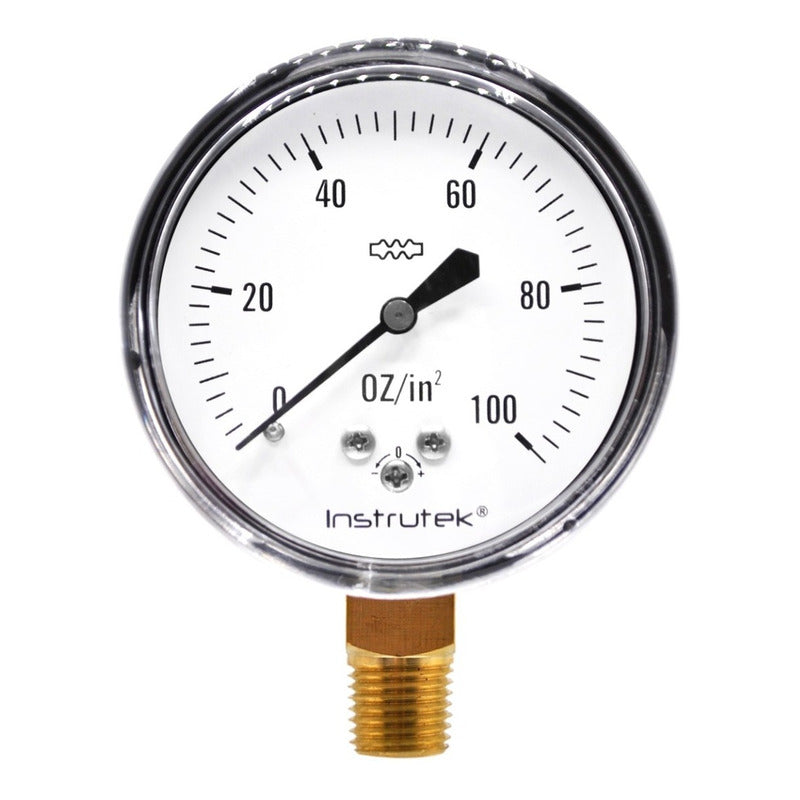

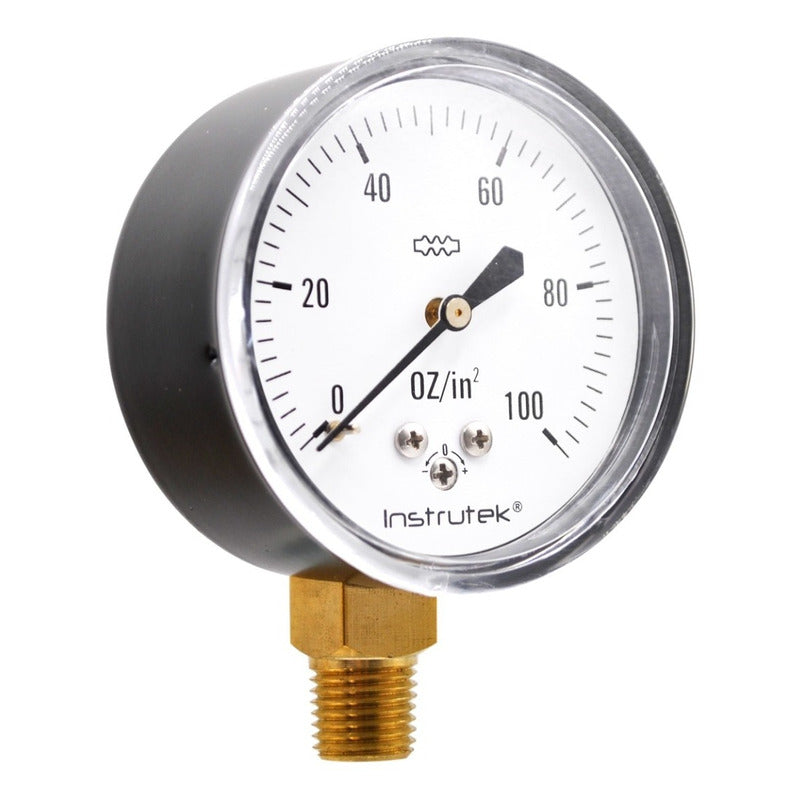

Low pressure gauge range 100 oz/in2, ideal for filter control, gas distribution, HVAC systems, leak detection, level indication and medical applications.

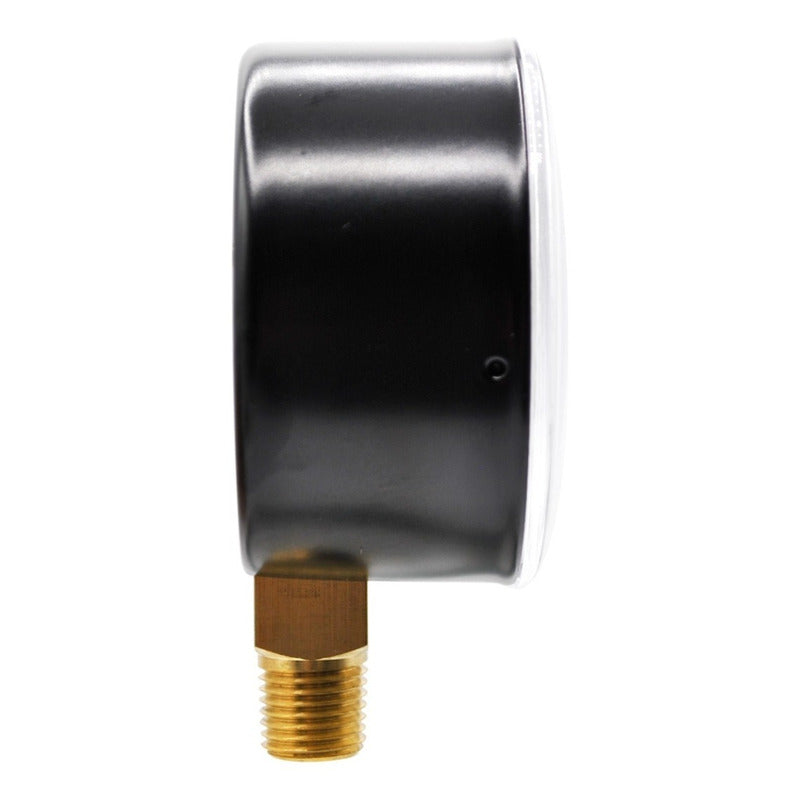

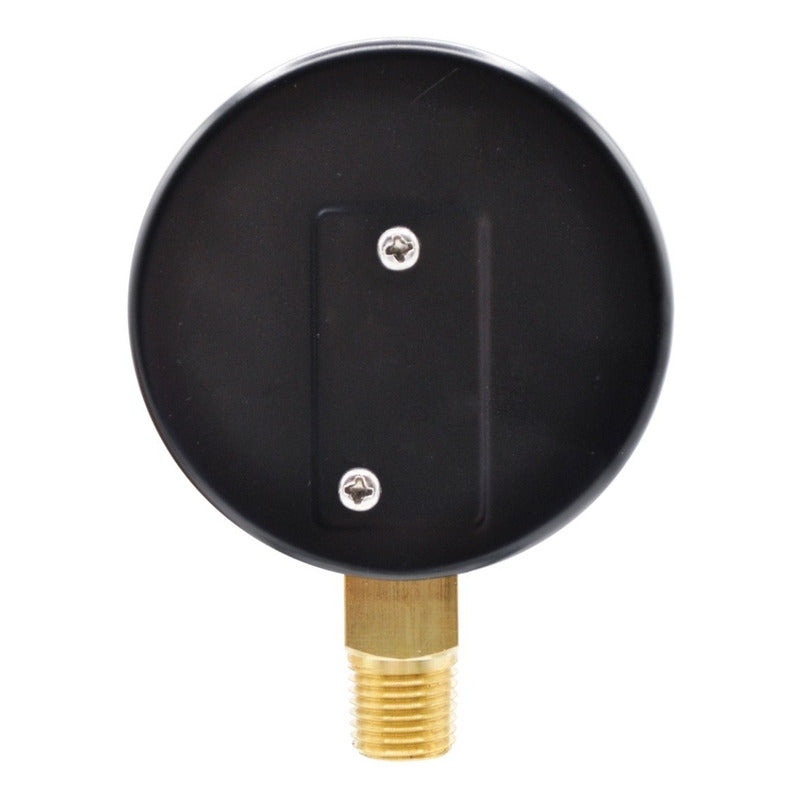

The case is made of carbon steel (matte black finish), with a polycarbonate window, bronze interior, and a diaphragm-type measuring element. The bottom connection is 1/4" NPT.
OTHER RANGES AVAILABLE IN OUNCES:
10 oz/in2
30 oz/in2
35 oz/in2
60 oz/in2
OTHER RANGES AVAILABLE IN INH2O:
10 inH2O
15 inH2O
30 inH2O
60 inH2O
100 inH2O
160 inH2O
OTHER RANGES AVAILABLE IN DOUBLE SCALE:
20 oz/in2 and 35 inH2O
32 oz/in2 and 55 inH2O
OTHER RANGES AVAILABLE IN PSI:
3 psi
5 psi
10 psi
