Description

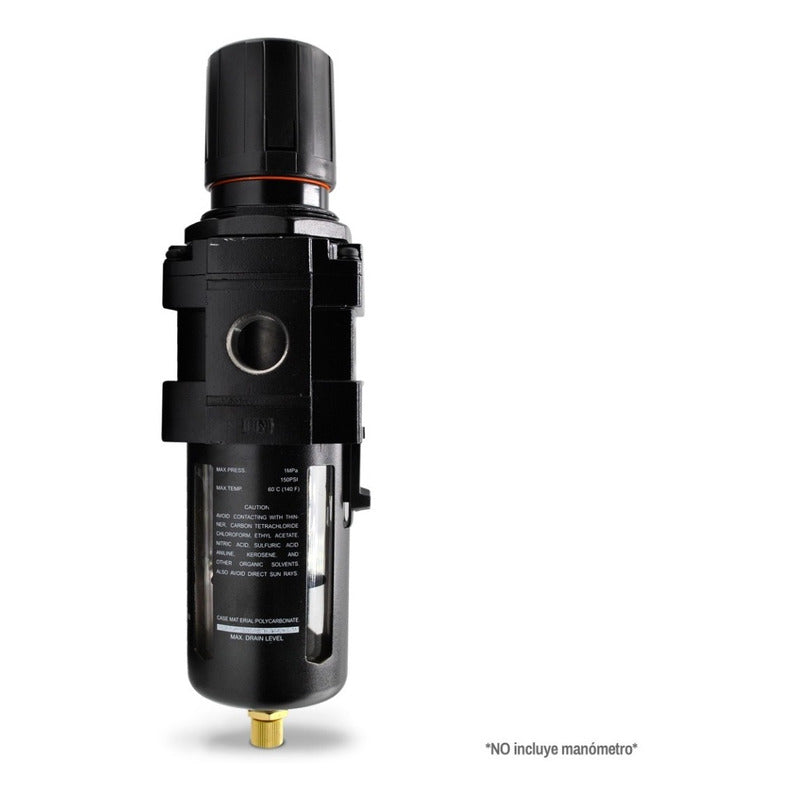

Pneumatic Filter-Regulator ideal for working in pneumatic/compressor circuits. Its main function is to separate particles present in the air and maintain constant operating pressure despite fluctuations in the inlet pressure line.

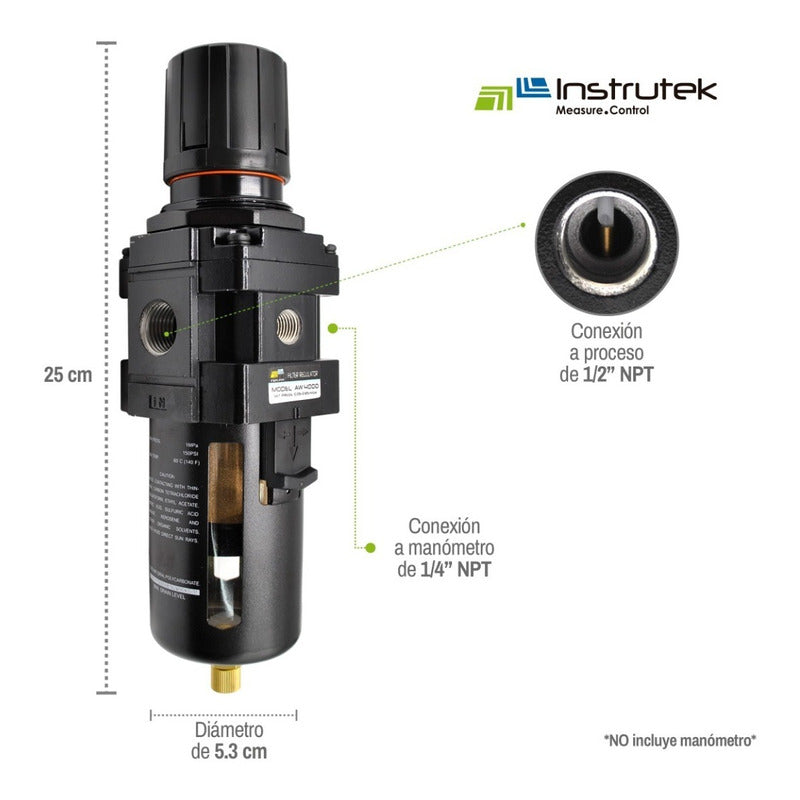

Die-cast aluminum body, 1/2” line connections and 1/4” pressure gauge connection, maximum pressure supported up to 145 psi (maximum working pressure 120 psi), ambient and fluid temperature 5º to 60º Celsius, Filtering precision 25 microns, polycarbonate cup.
NOTE: MANOMETER NOT INCLUDED.
OTHER MEASURES AVAILABLE:
1/4”
3/8"
3/4"
1"
